WORKS MINI

  • ORTHO
  • ORTHO
  • ORTHO
  • ORTHO

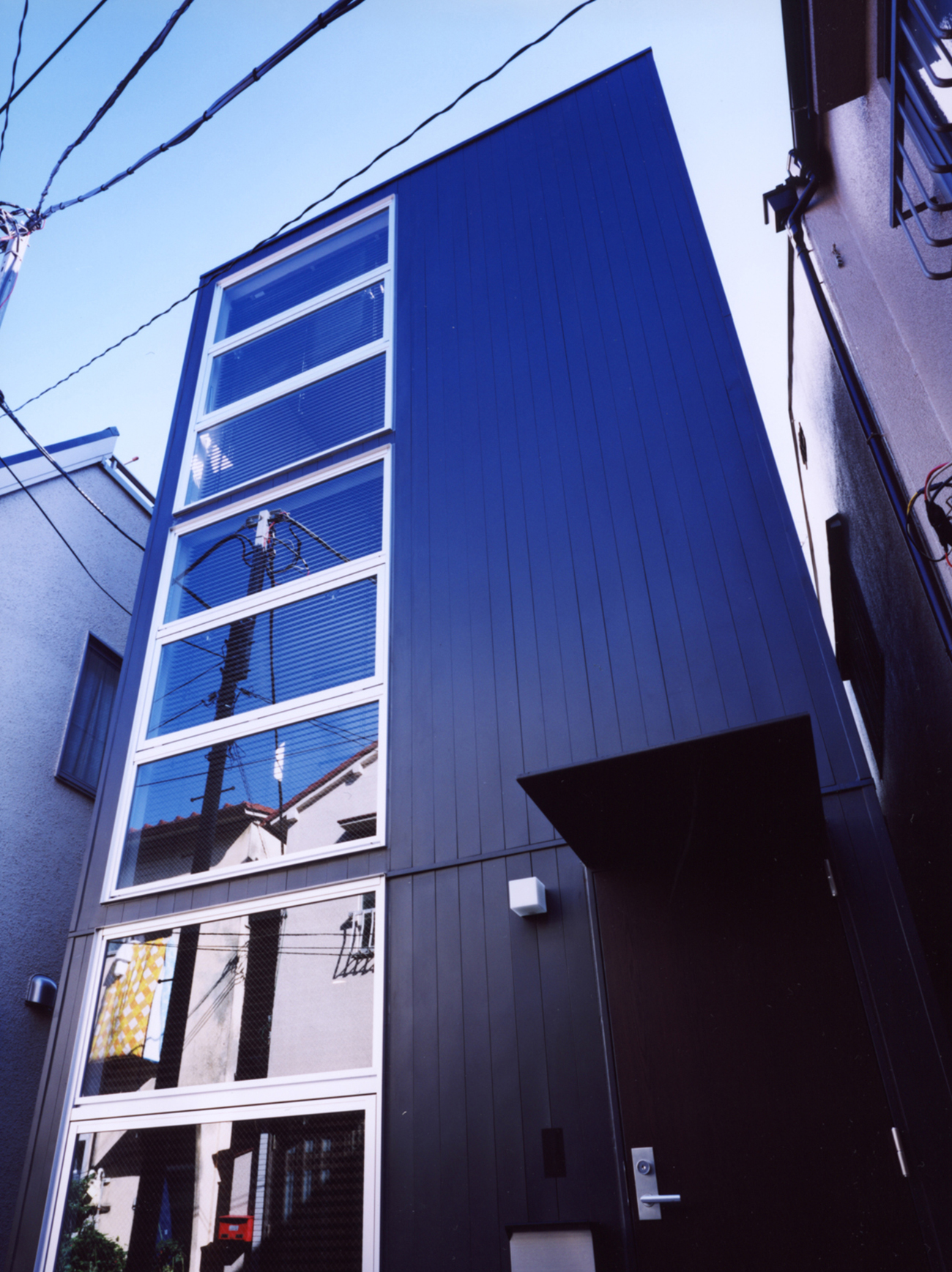

A steel constructed house project has started in a traditional wooden residential built up area in Sumida ward. The client is a single woman in her twenties who brought up locally. With her attachment, she offered a residence to live with her parents with a precept of rebuilding the central room.

With 31.99sqm site area and 19.08sqm building area being extremely narrow, in order to hold sufficient inner scale, thin pre-manufactured LGS panel was inserted systematically which nullified the field wielding at comparatively low price. The studied minimum wall thickness allowed the inner space to be maximum.

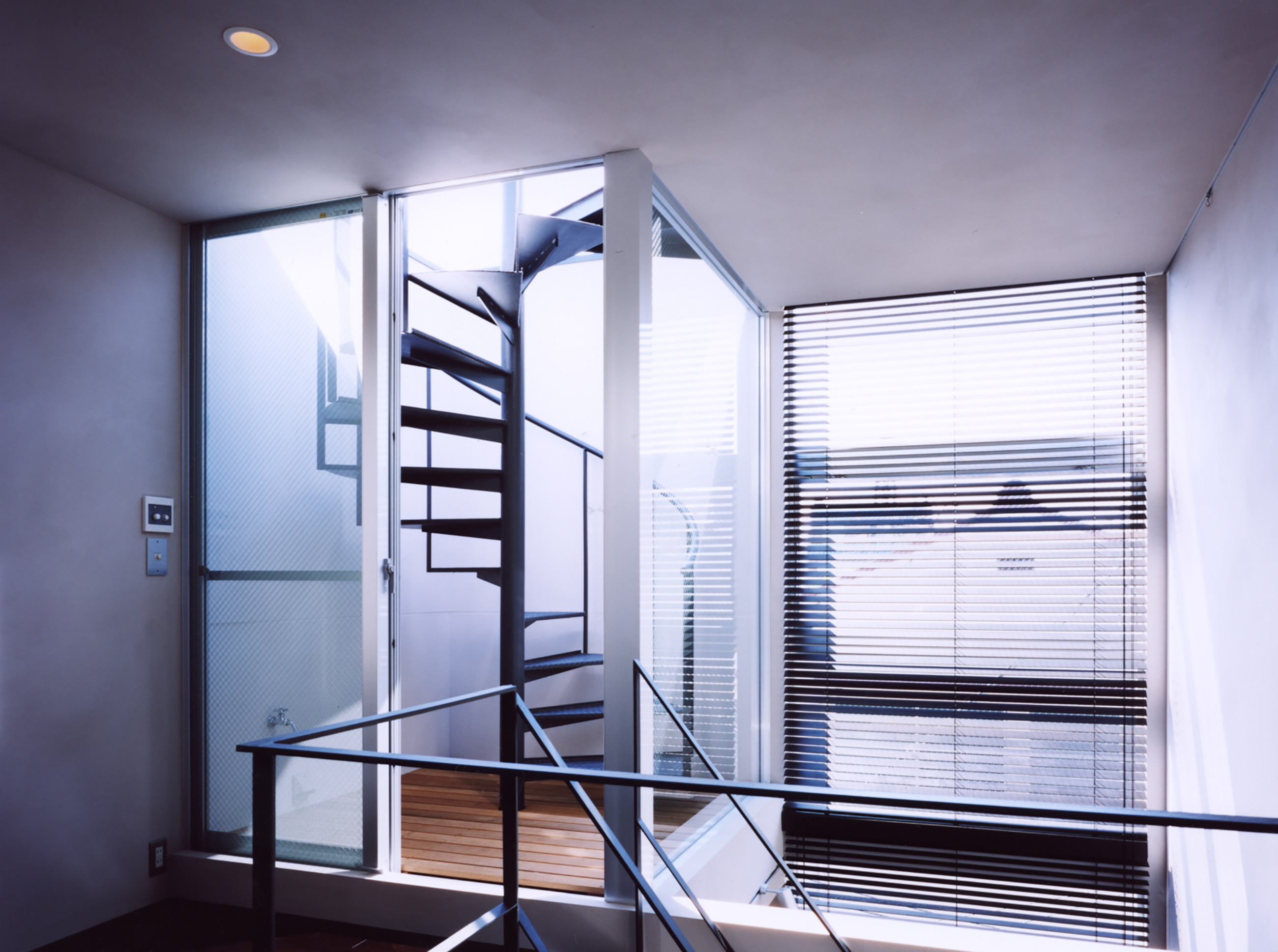

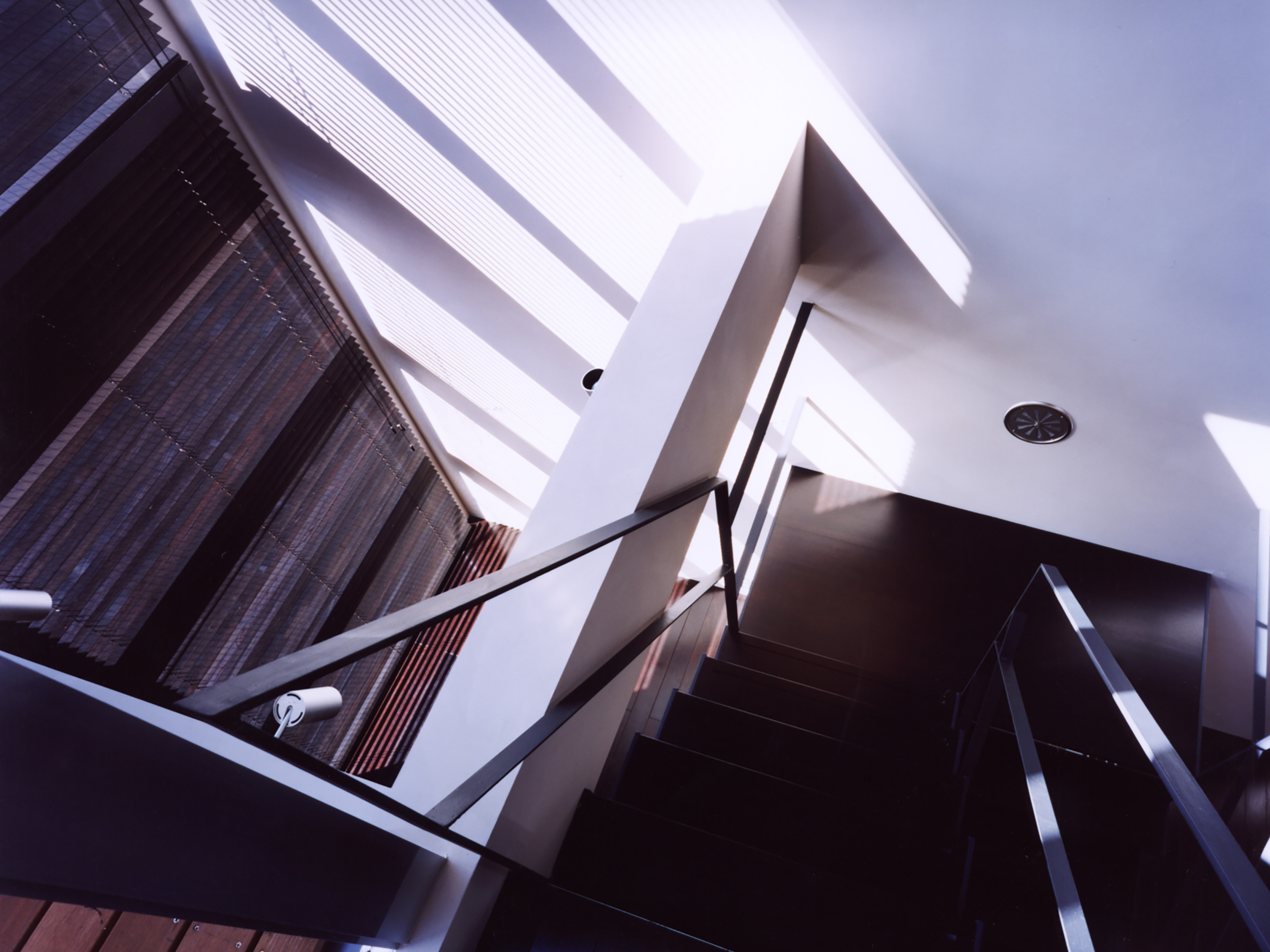

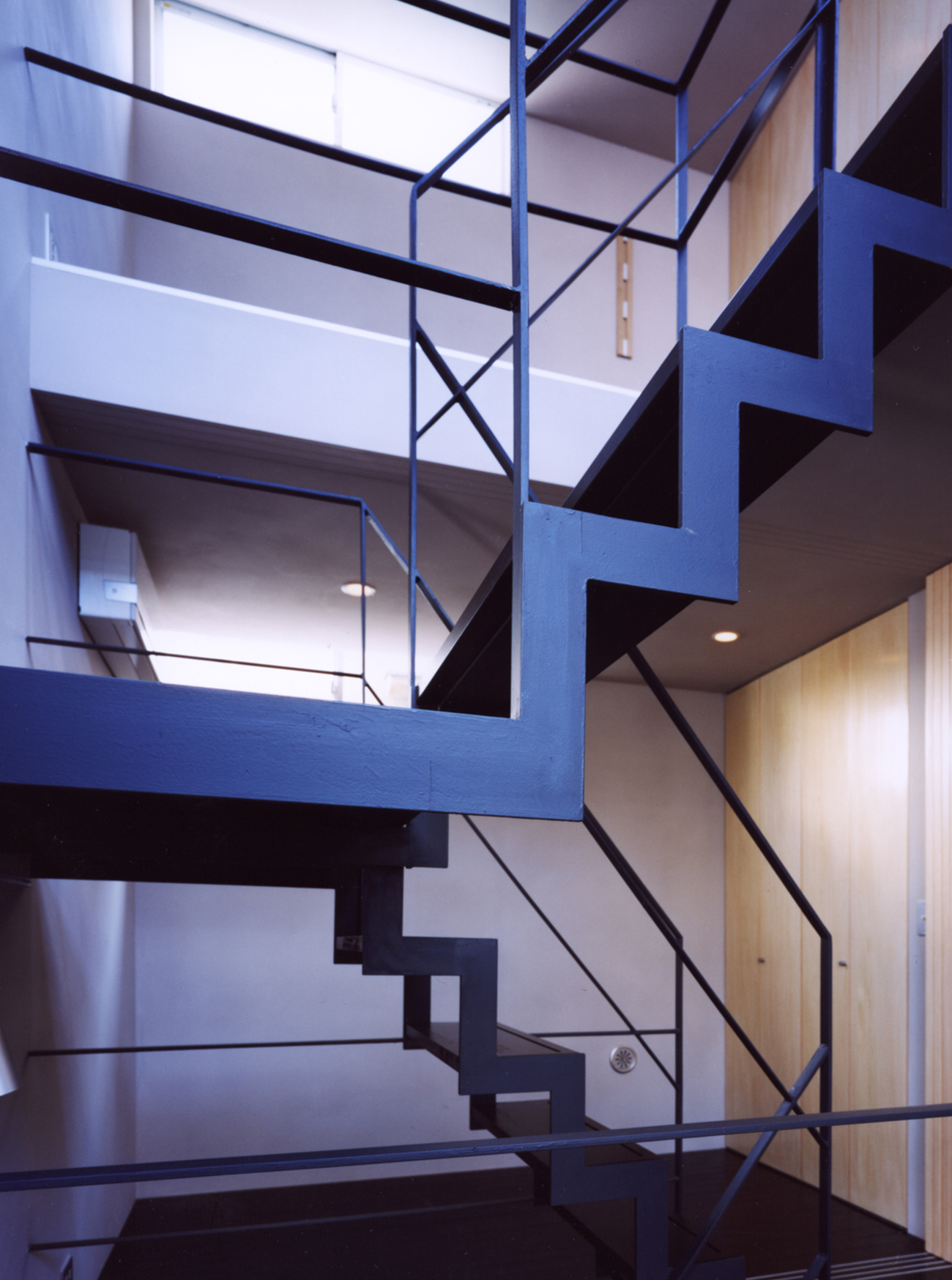

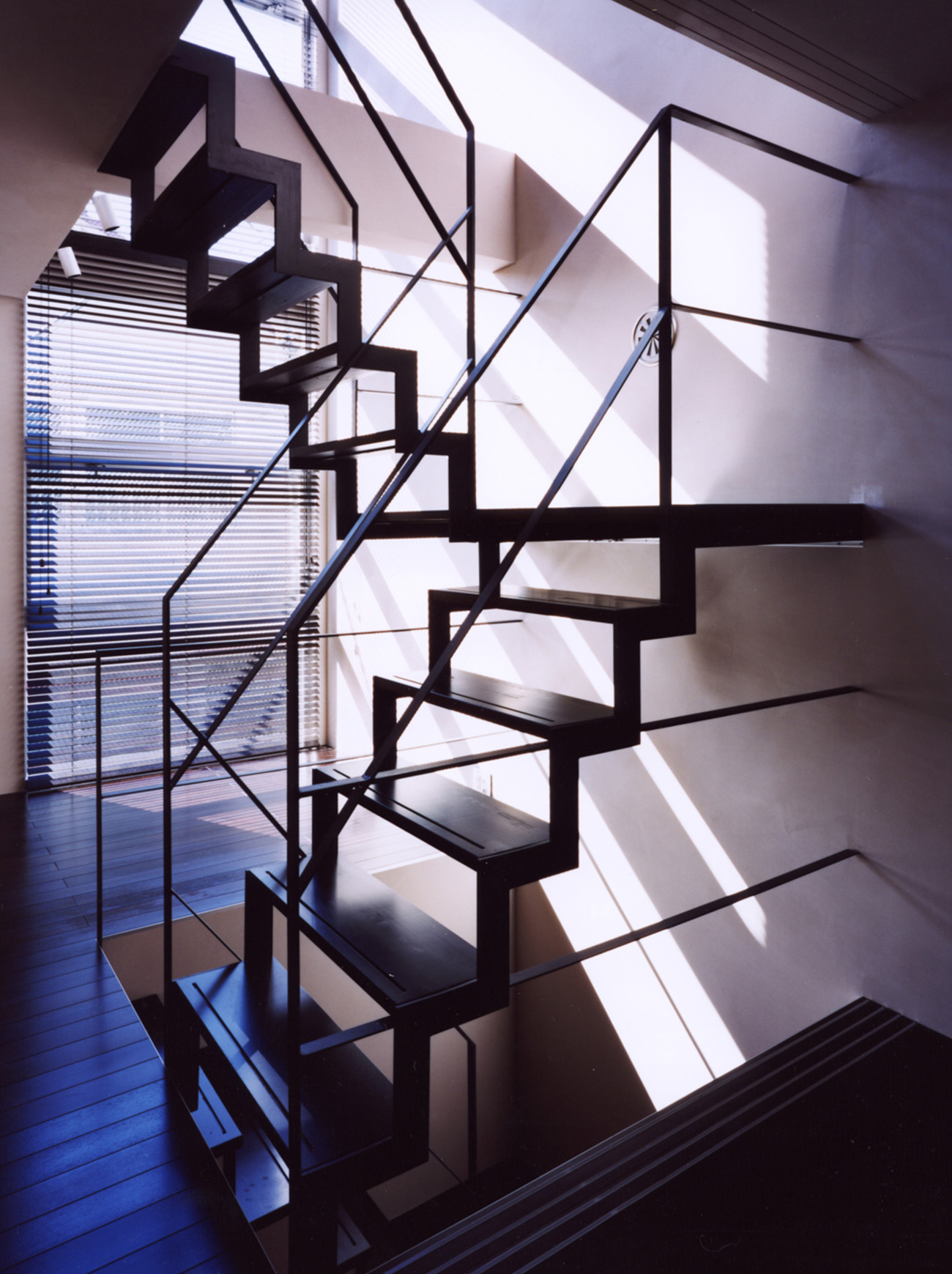

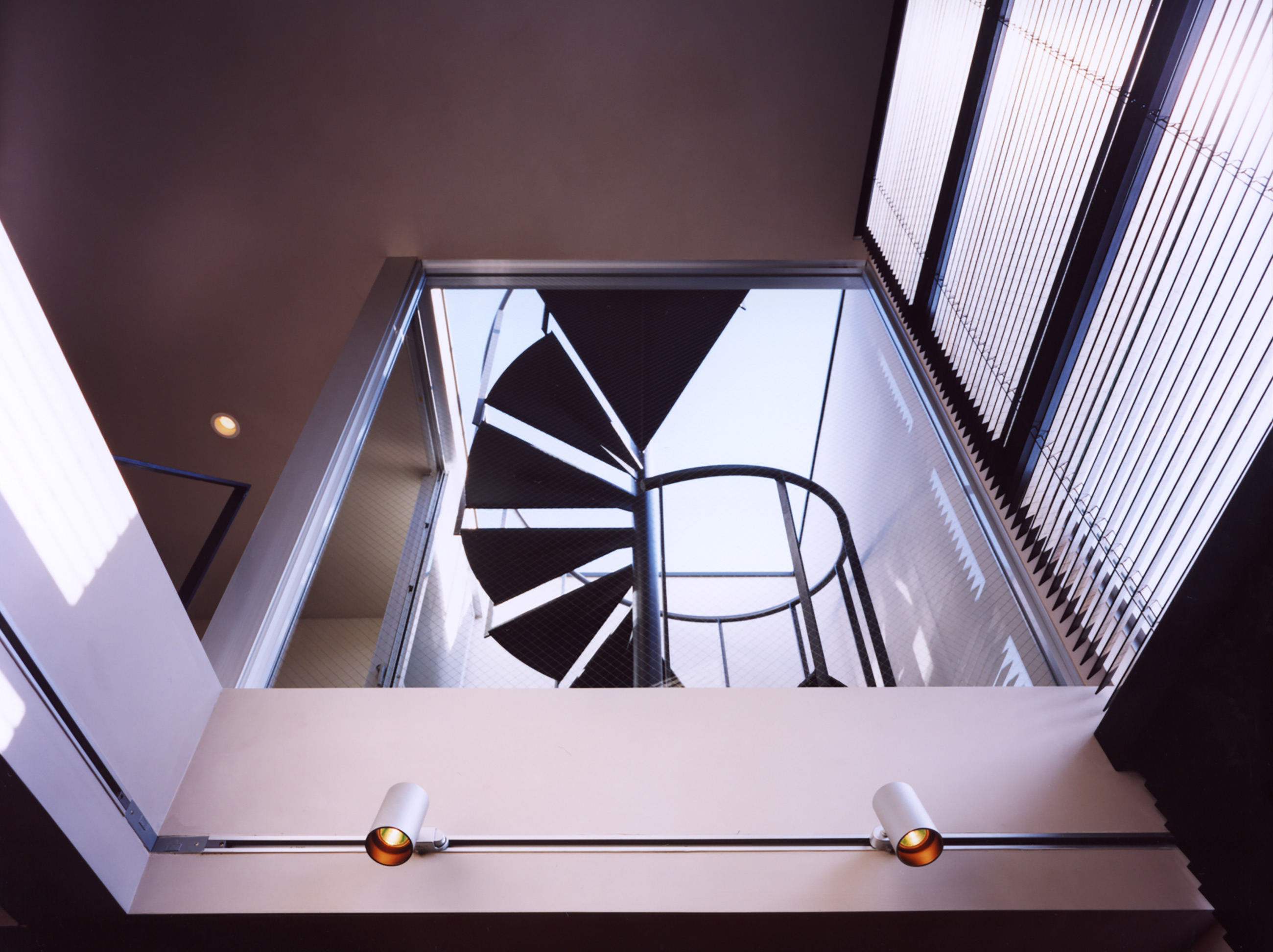

Much alike previous SEVEN, vertical “one-room” is based on central stairwell. Given the condition of 3 bedrooms placed in each floor, MINI secures private. In limited space of 3.3sqm void and terrace overlaps and creates comfortable space and profundity

MEDIA

[B1 MAGAZINE] (Thai)

[Small House Tokyo] (UK)

[BUSSINESS WEEK]

[satisphere3]

[LiVES]

[designboom]

[Small House”ism”]

MEDIA

「B・1 MAGAZINE」(タイ)

「Small House Tokyo」(英国)

「BUSSINESS WEEK」

「satisphere3」

「LiVES」

「designboom」

「狭小住宅イズム」

DATA

  • Location Sumida ward Tokyo
    Completion 2004. 10
    Lot area 31.99㎡
    Site area 19.08㎡
    1F Floor area 19.08㎡
    2F Floor area 19.08㎡
    3F Floor area 14.04㎡
    Total floor area 52.20㎡
    Structure LGS
    Scale 3F
    Typology Private Housing
    Family structure A couple + their parents
    Structure engineers Masaki Structural Laboratory
    Kenta Masaki
    Facility engineer Shimada Architects
    Zenei Shimada
    Construction Maekawa Construction
    Photographer Mikihisa Matsuda
  • 所在地 東京都墨田区八広
    竣工 2004年10月
    敷地面積 31.99㎡( 9.67坪)
    建築面積 19.08㎡( 5.77坪)
    1F床面積 19.08㎡( 5.77坪)
    2F床面積 19.08㎡( 5.77坪)
    3F床面積 14.04㎡( 4.24坪)
    延床面積 52.20㎡(15.79坪)
    構造 軽量鉄骨造(LGS)
    規模 地上3階建
    用途 専用住宅(2世帯住宅)
    家族構成 本人+両親
    構造設計 正木構造研究所
    正木健太
    設備設計 シマダ設計
    島田善衛
    施工 前川建設
    建築写真 松田幸久
