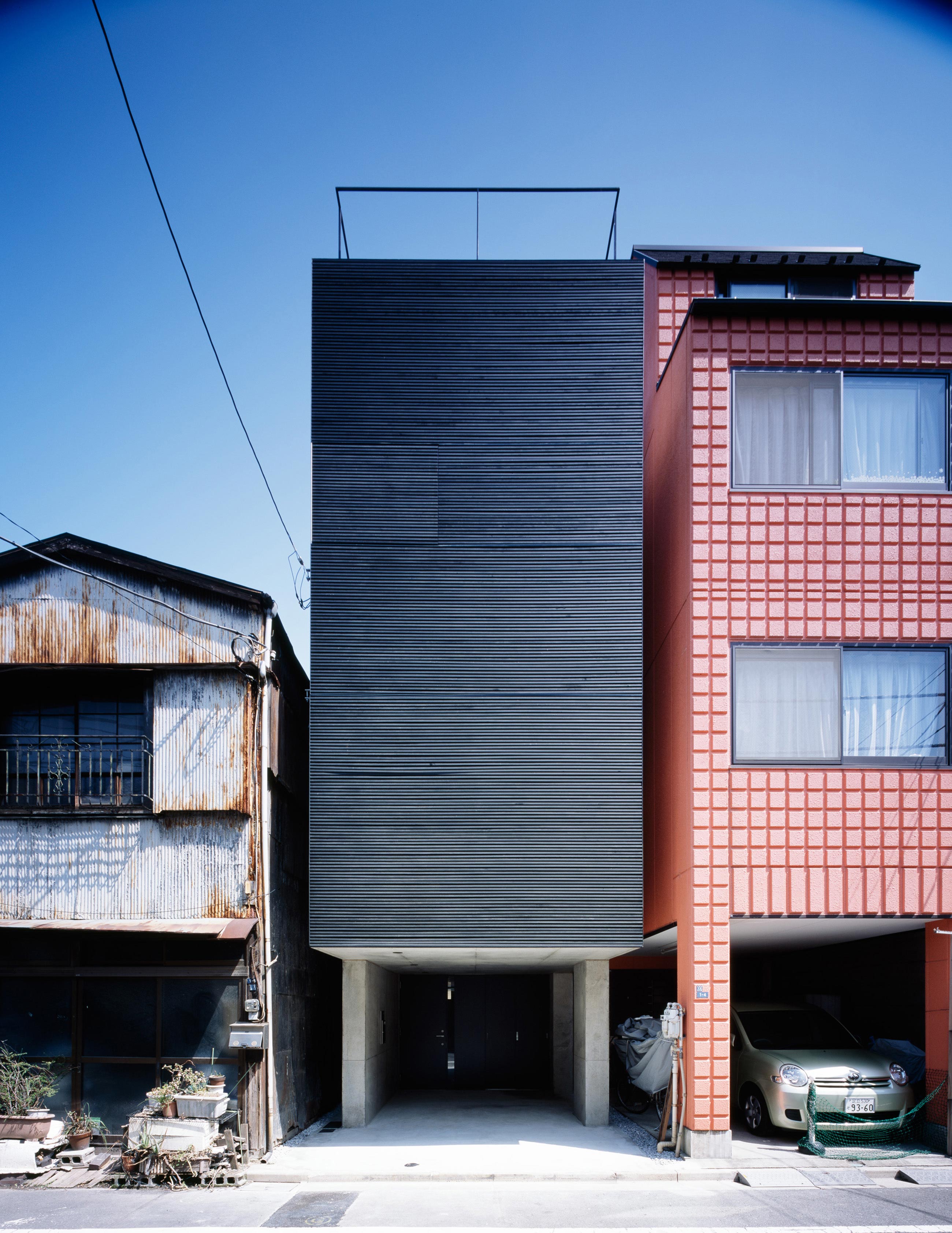

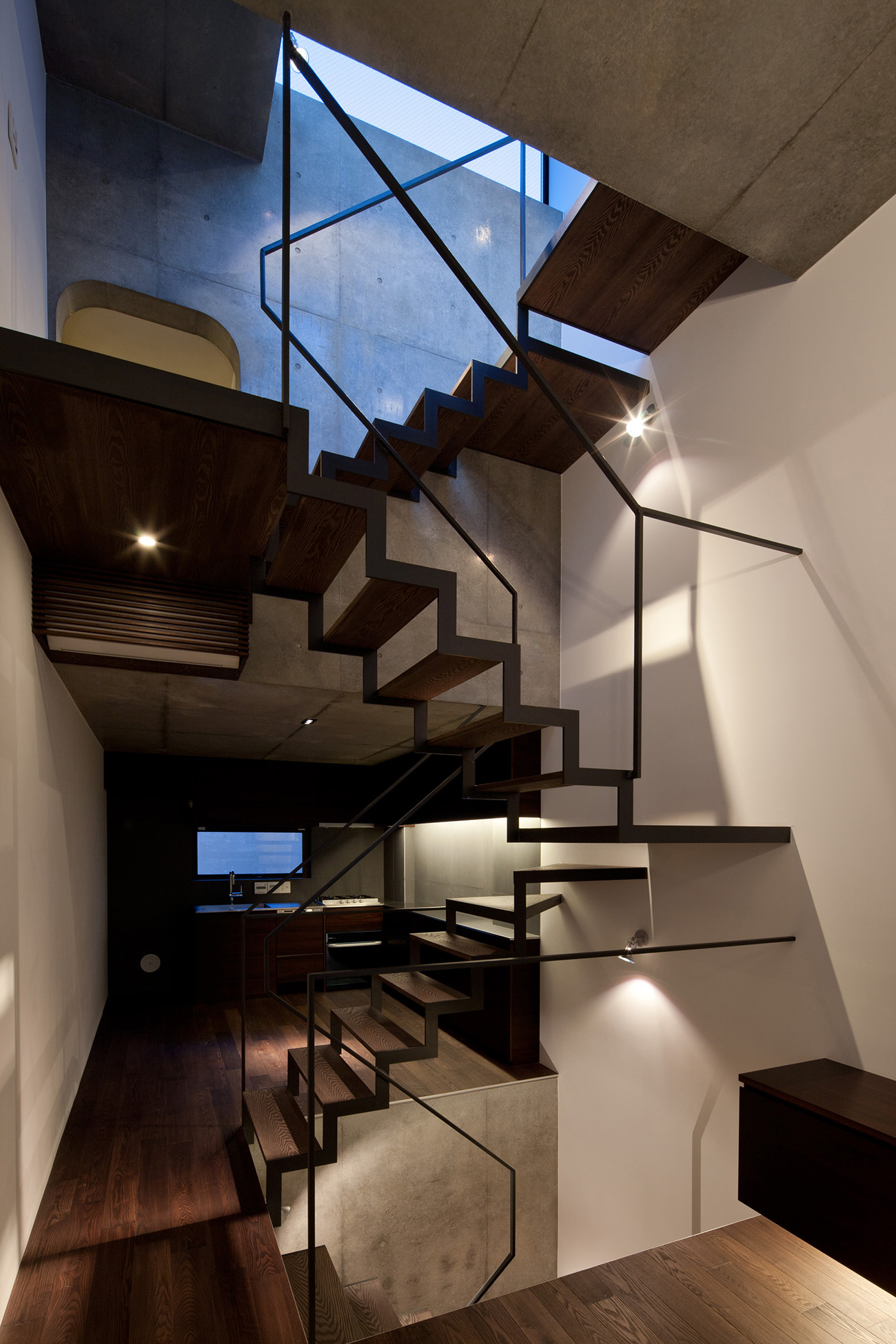

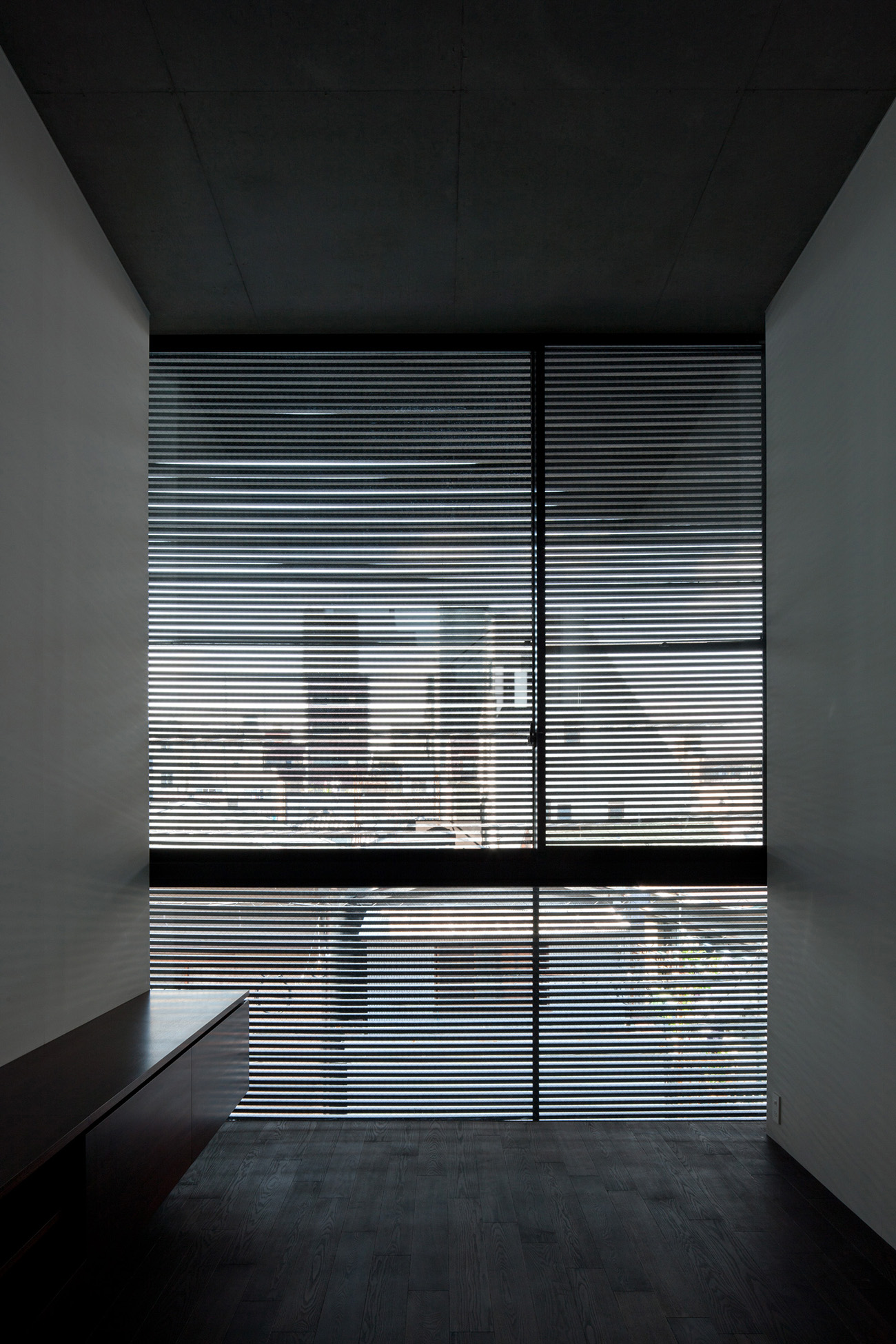

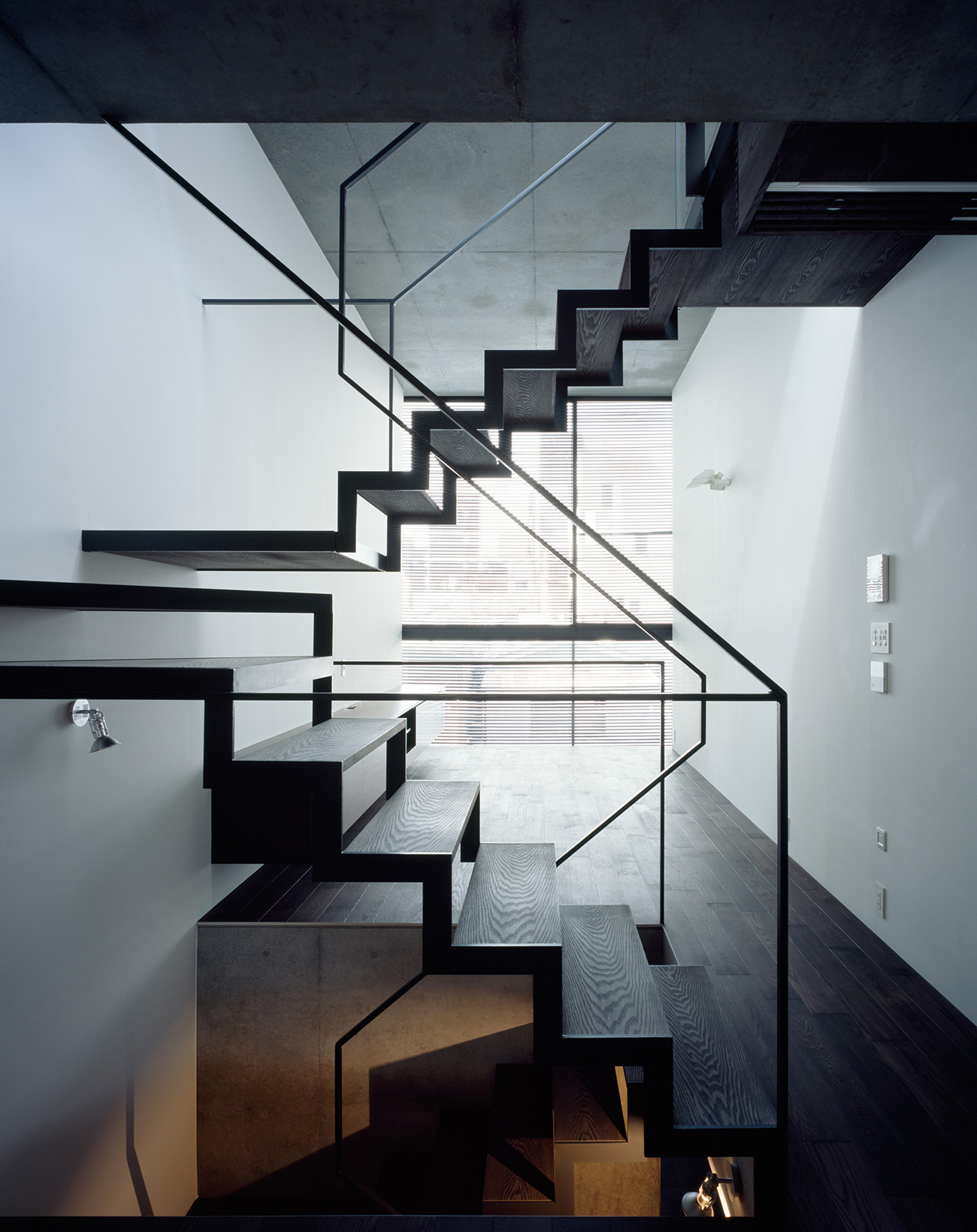

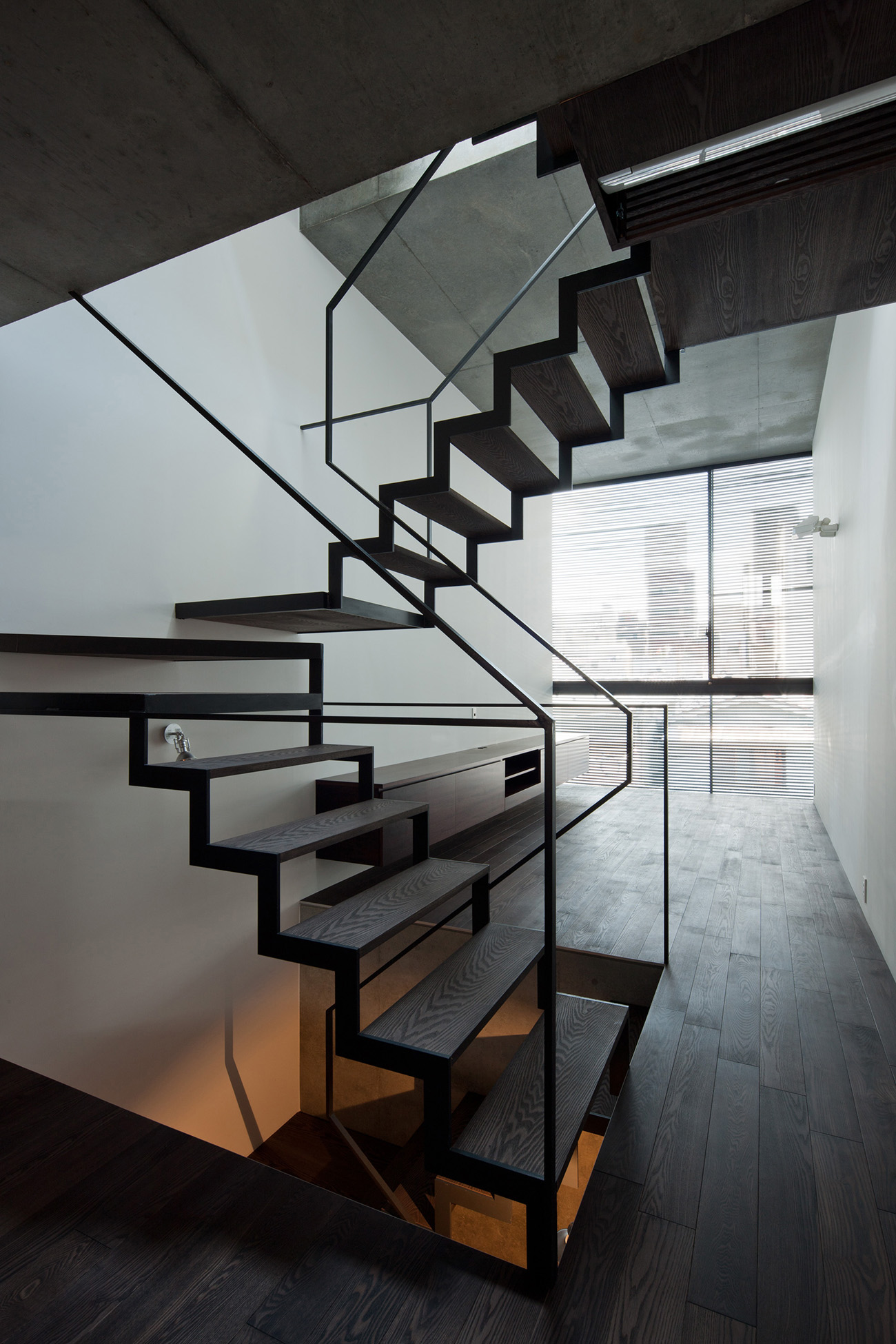

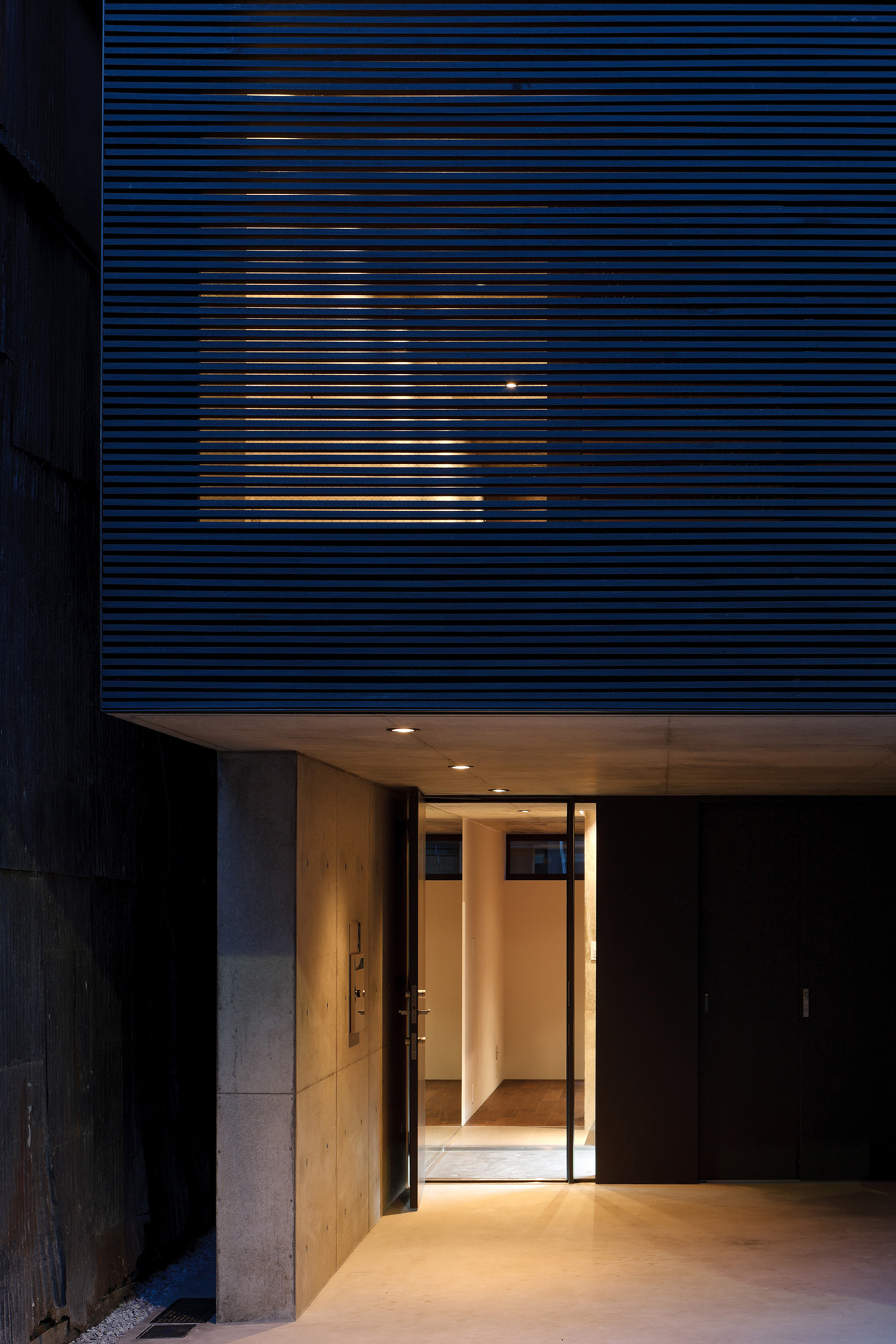

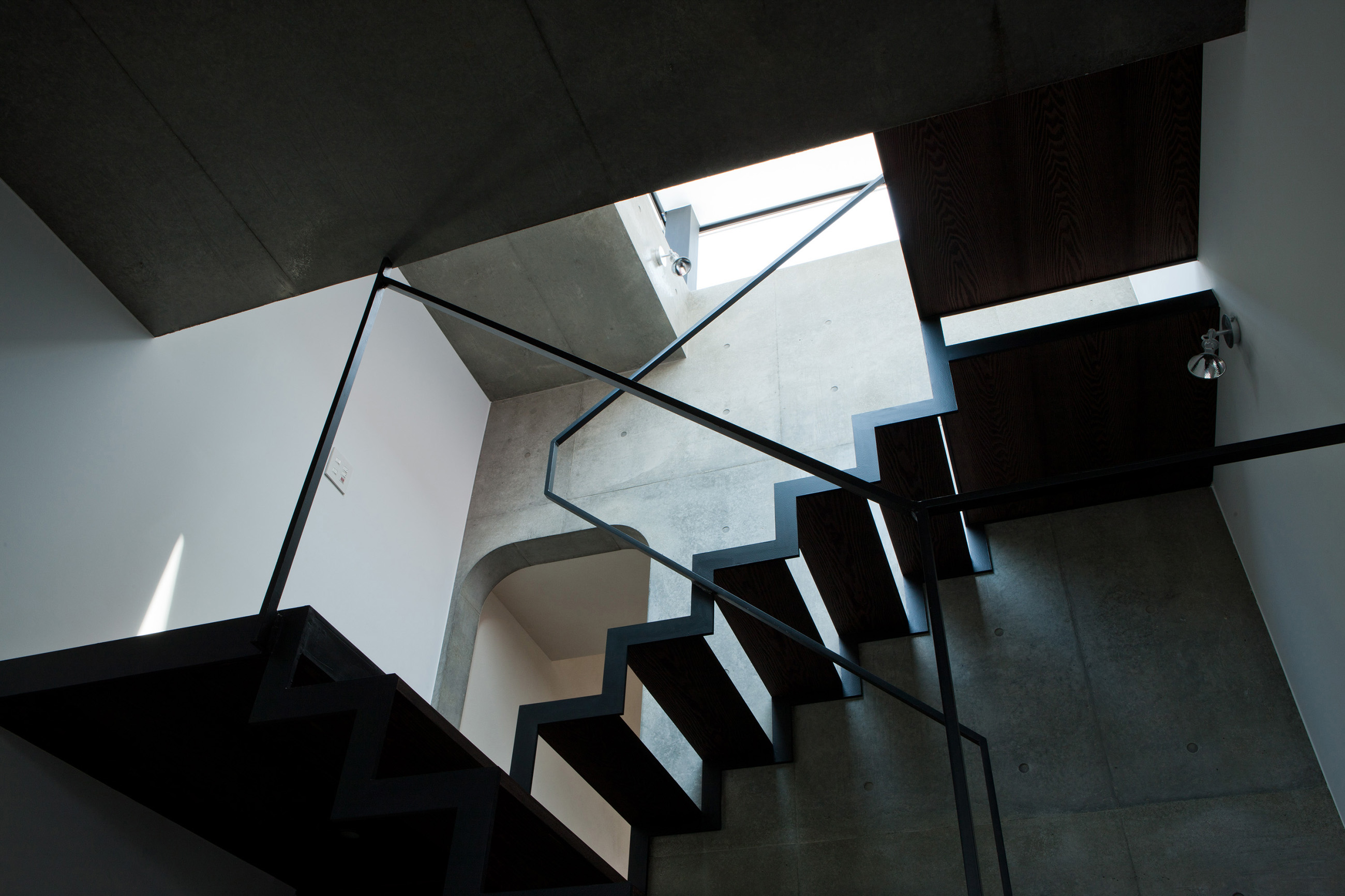

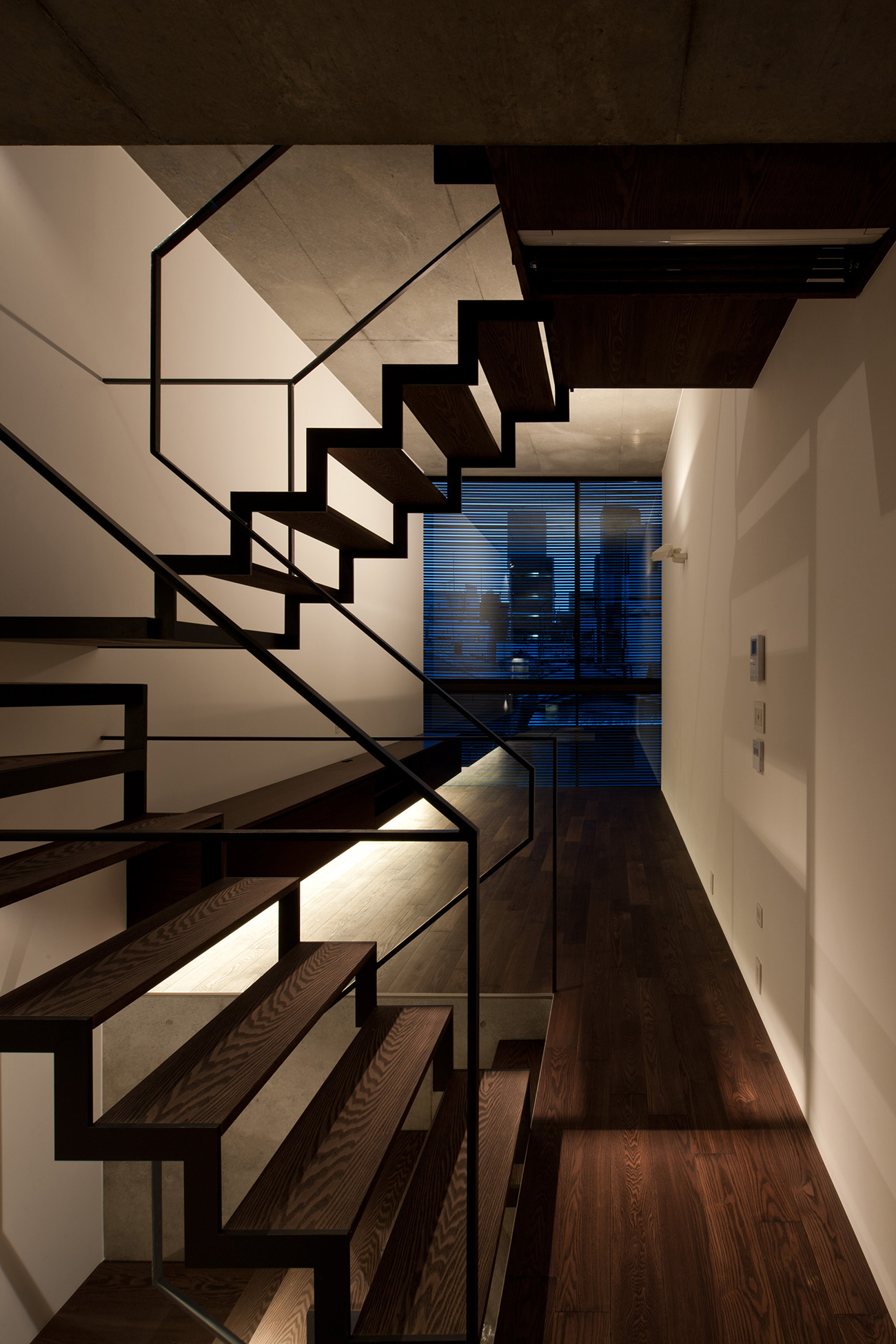

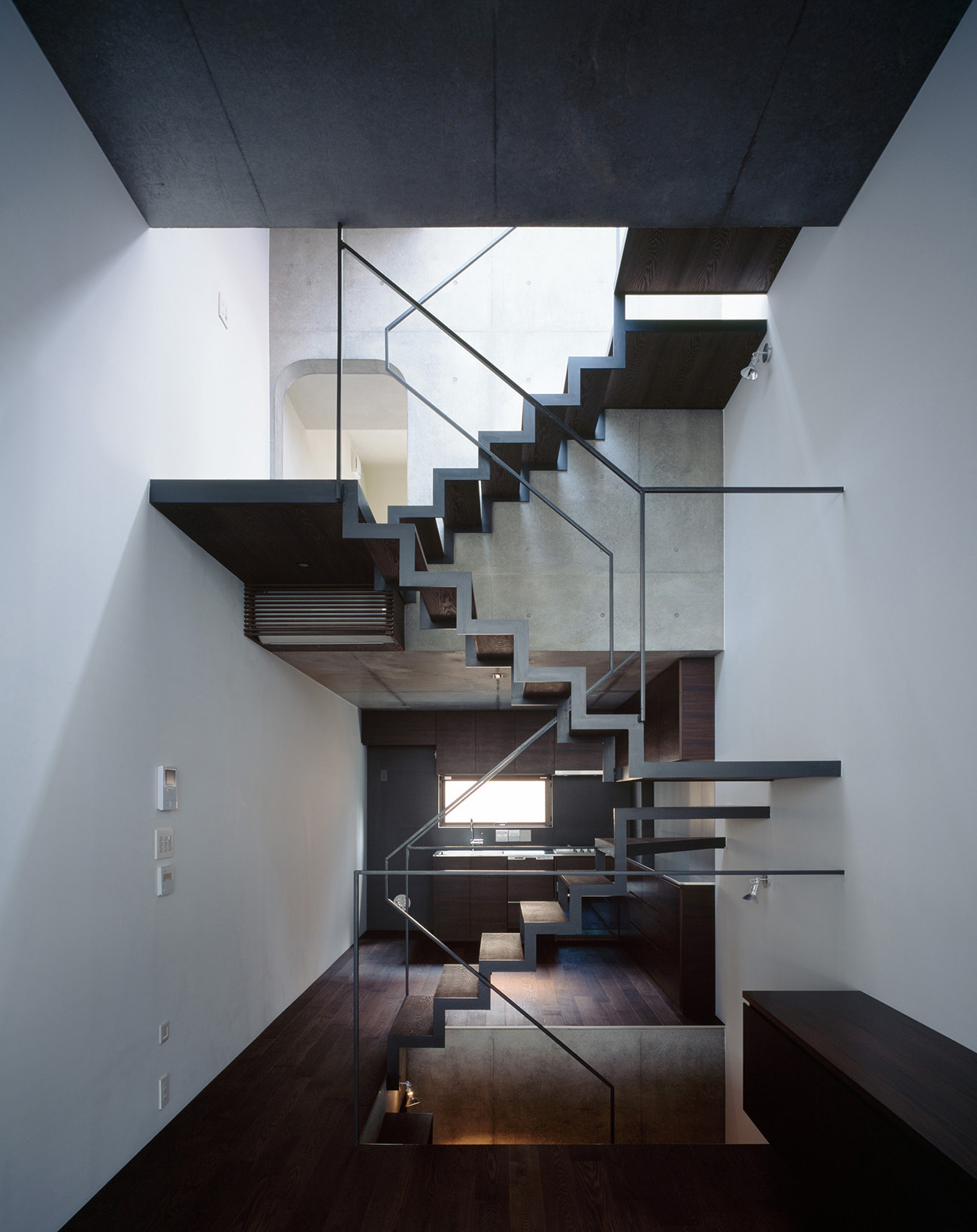

The site is located in a highly populated residential area in eastern Tokyo. The facade of the house for single residents is entirely covered with wooden louvers. In order to ensure a piloti style garage to park a large-sized car in the long and narrow lot, an RC thin rigid frame was employed. The front and back spaces are loosely connected by the see-through stairs that are located at the center. The upper floor has a stereoscopic composition via a split level with an open ceiling. Sunlight showers down from the penthouse and fills the enclosed small area, and casts deep shadows in the brutal space.

DATA

  • Location Taitou ward Tokyo
    Completion 2013.3
    Site Area 44.57㎡
    Building Area 34.18㎡
    1F floor area 29.09㎡
    2F floor area 34.18㎡
    3F floor area 34.18㎡
    PH floor area 3.99㎡
    Total floor area 101.44㎡
    Structure RC
    Scale 3F+PHF
    Typology Private housing
    Structure engineers Masaki Structure
    Kenta Masaki
    Facility engineers Shimada Architects
    Zenei Shimada
    Construction Maekawa Construction
    Photographer Masao Nishikawa
  • 所在地 東京都台東区
    竣工 2013年3月
    敷地面積 44.57㎡(13.48坪)
    建築面積 34.18㎡(10.34坪)
    1F床面積 29.09㎡(8.80坪)
    2F床面積 34.18㎡(10.33坪)
    3F床面積 34.18㎡(10.33坪)
    PHF床面積 3.99㎡(1.20坪)
    延床面積 101.44㎡(30.68坪)
    構造 RC薄肉ラーメン構造
    規模 地上3階建+PH
    用途 専用住宅
    構造設計 正木構造研究所
    正木健太
    設備設計 シマダ設計
    島田善衛
    施工 前川建設
    建築写真 西川公朗
