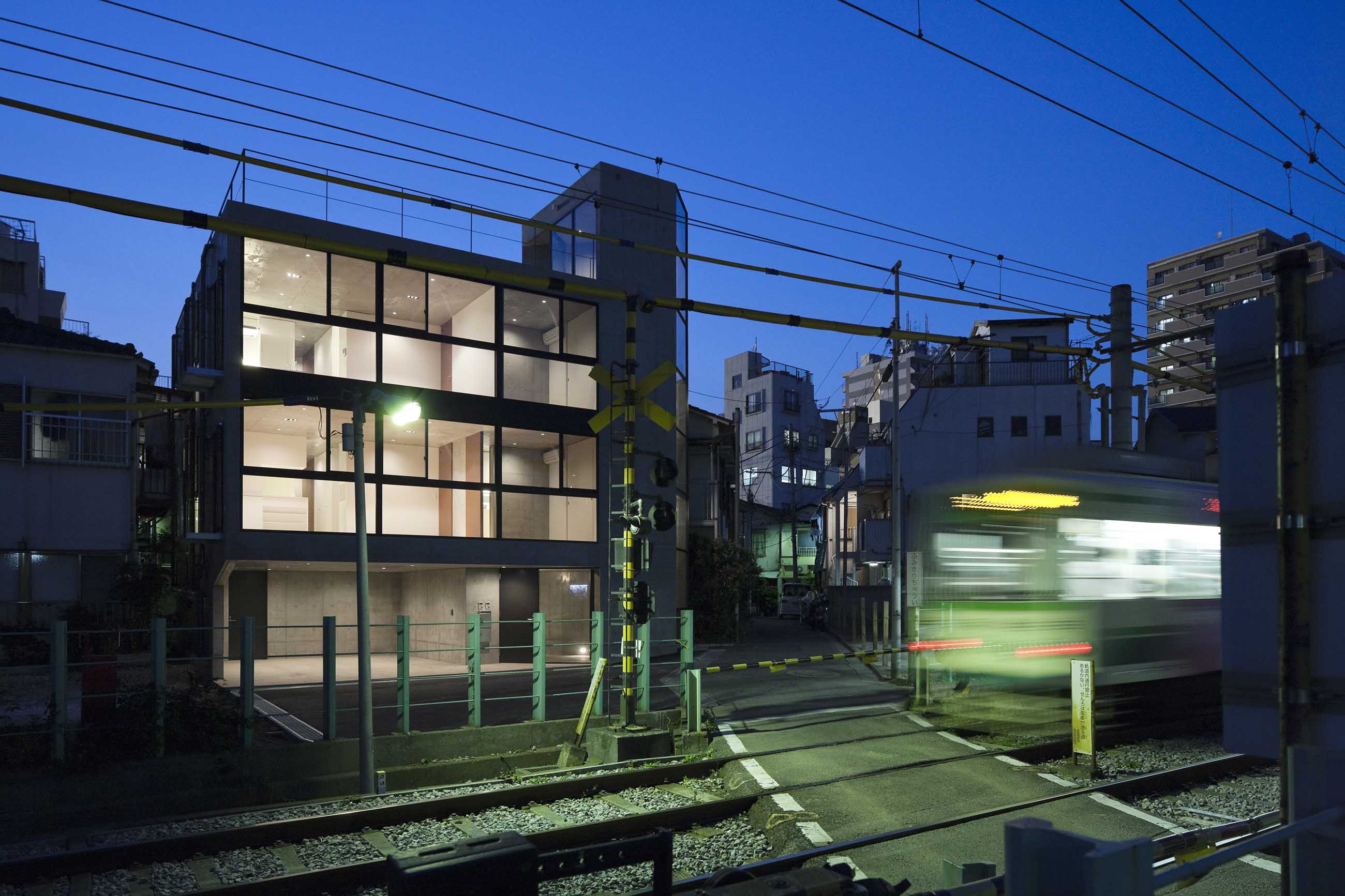

The plot is located along the Toden Arakawa line with abundant mood of its locality.

Because of the road expansion along the railroad, large-scale city development would take place and the lot was obligated to set back. In this occasion, the owners had decided to renovate their residence into a duplex and this project started.

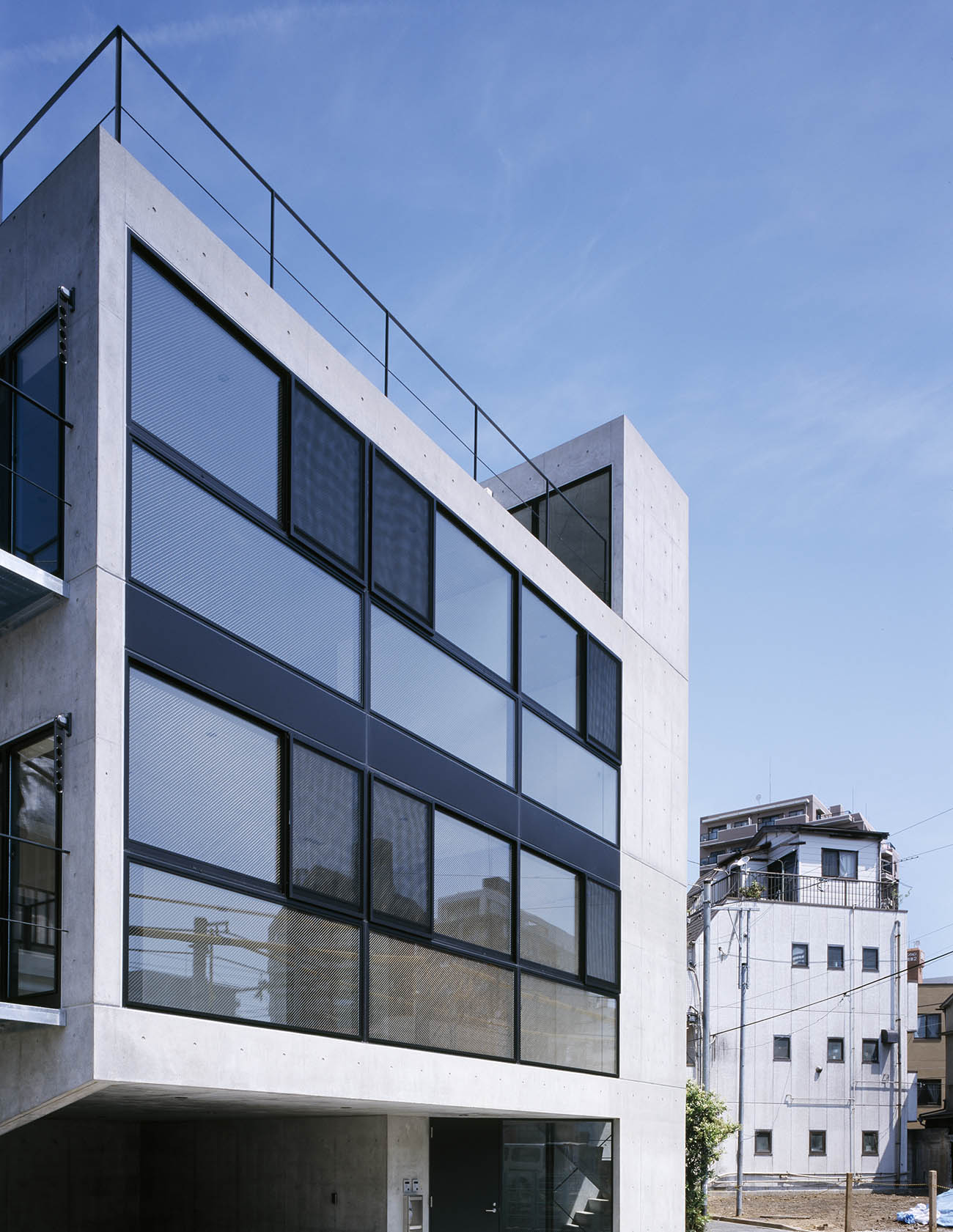

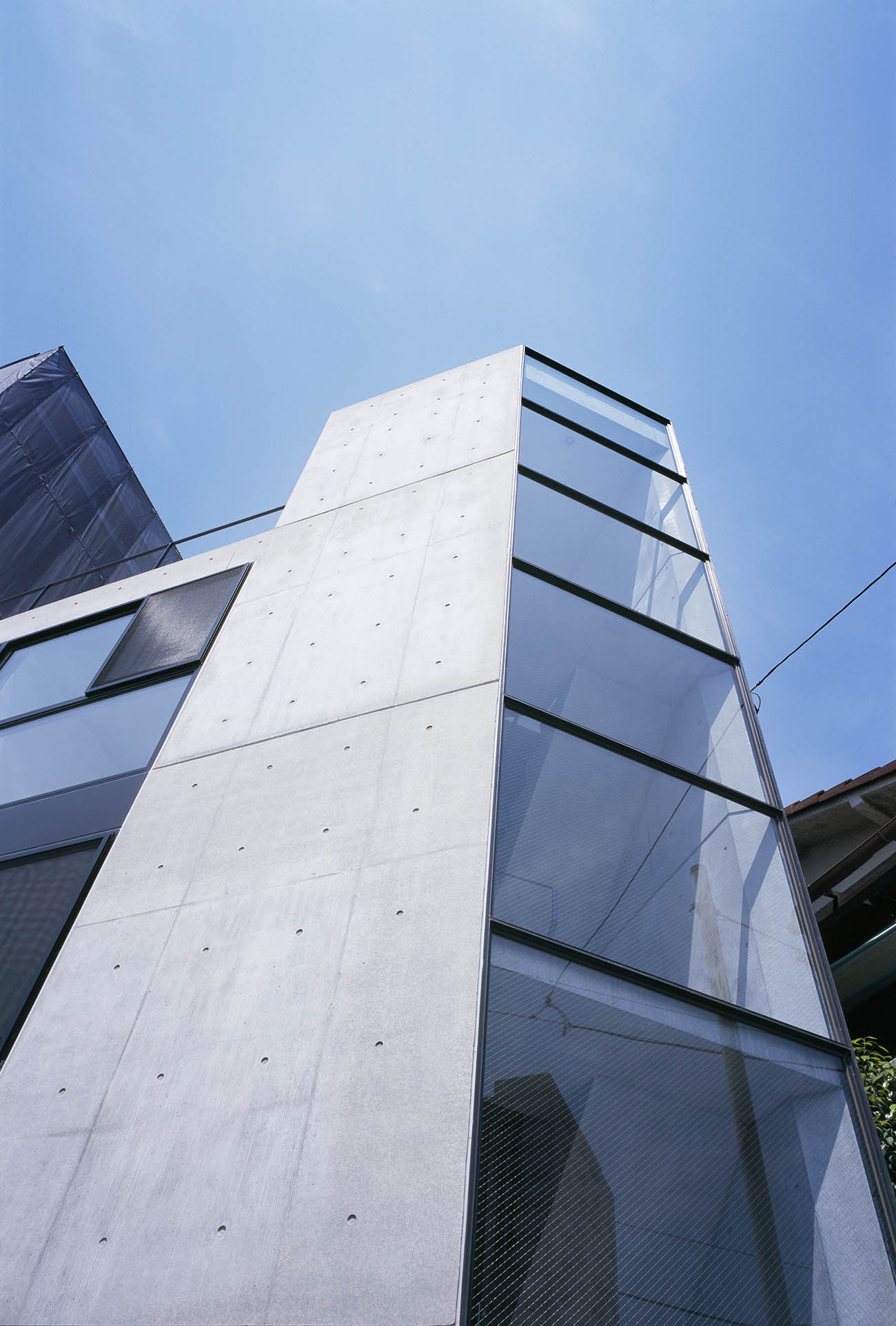

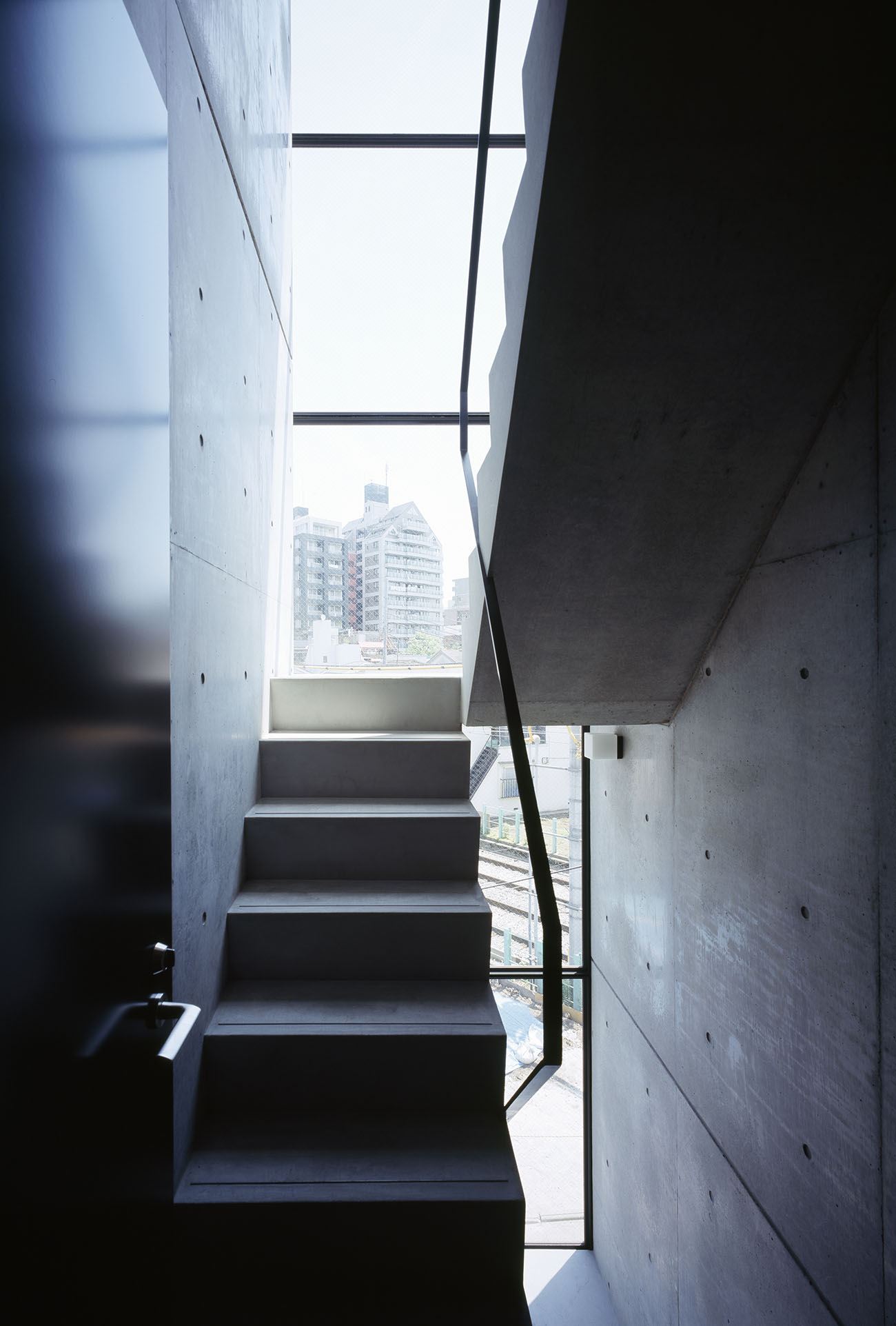

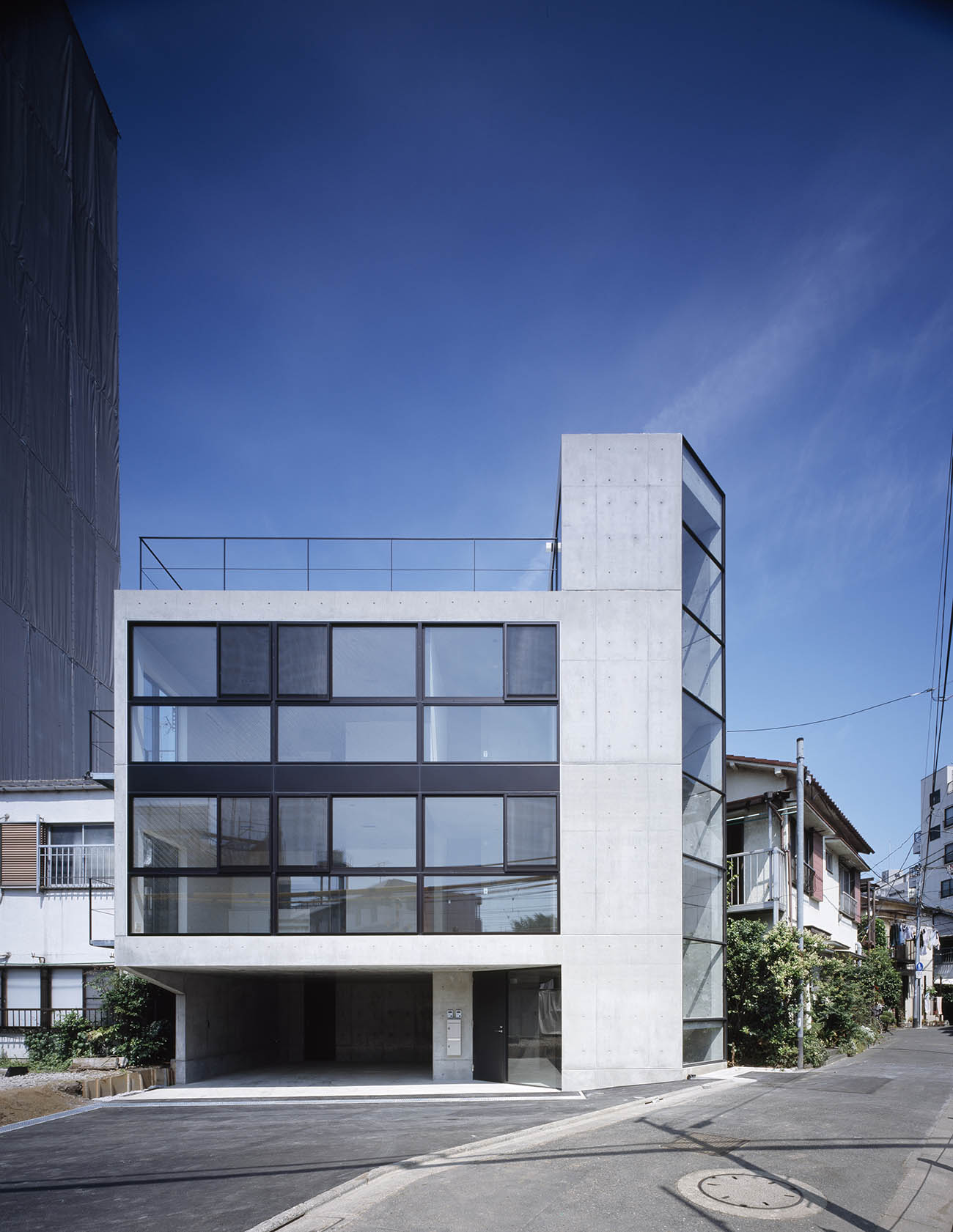

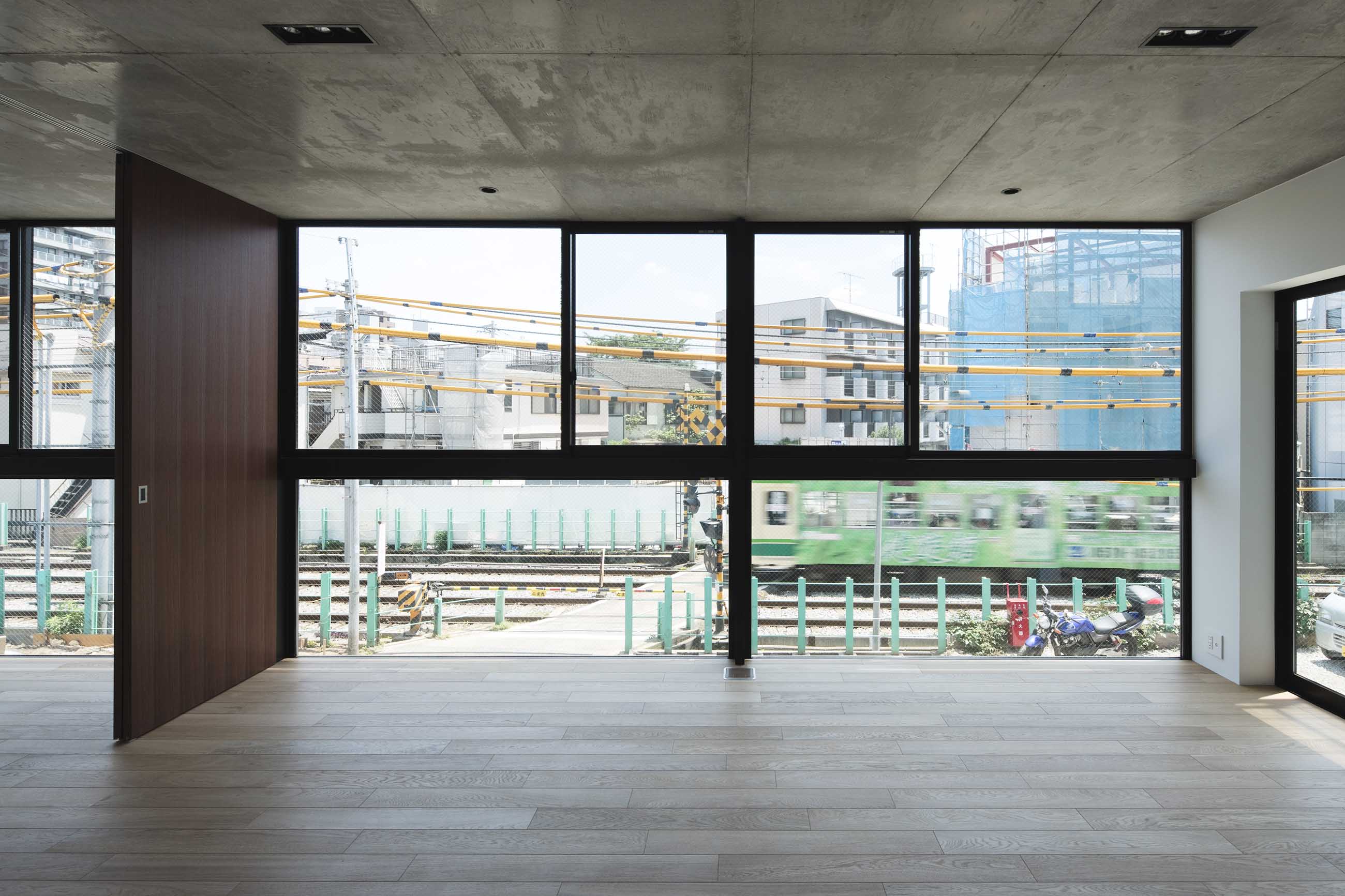

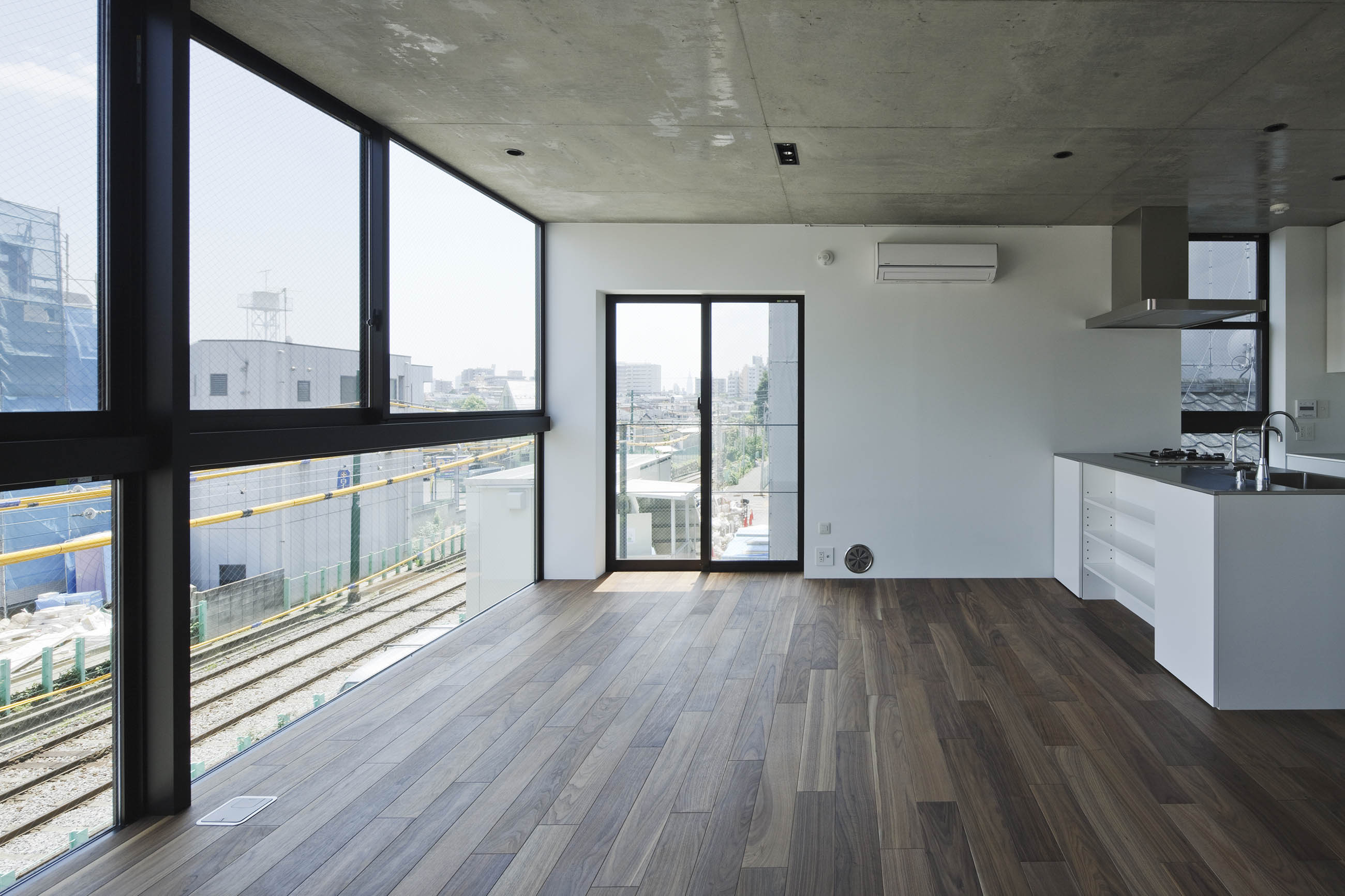

The residue of the setback shaped triangular. On the first floor, the husband holds a garage for his private and business cars. The two families share the stair case from the core outer stairs which perforate and make the box sequential space. The south orienting side facing the street is entirely covered up with horizontal windows which provide efficient sight and light. Even though the plot being limited and polygonal, TRICO provides open and luxury space with the unexpected method.



[Japan Architect Blog]



Japan Architect Blog


  • Location Higashi-Ikebukuro Toshimaku Tokyo
    Completion 2010. 5
    Lot area 80.85㎡
    Site area 64.38㎡
    1F floor area 64.38㎡
    2F floor area 75.11㎡
    3F floor area 61.67㎡

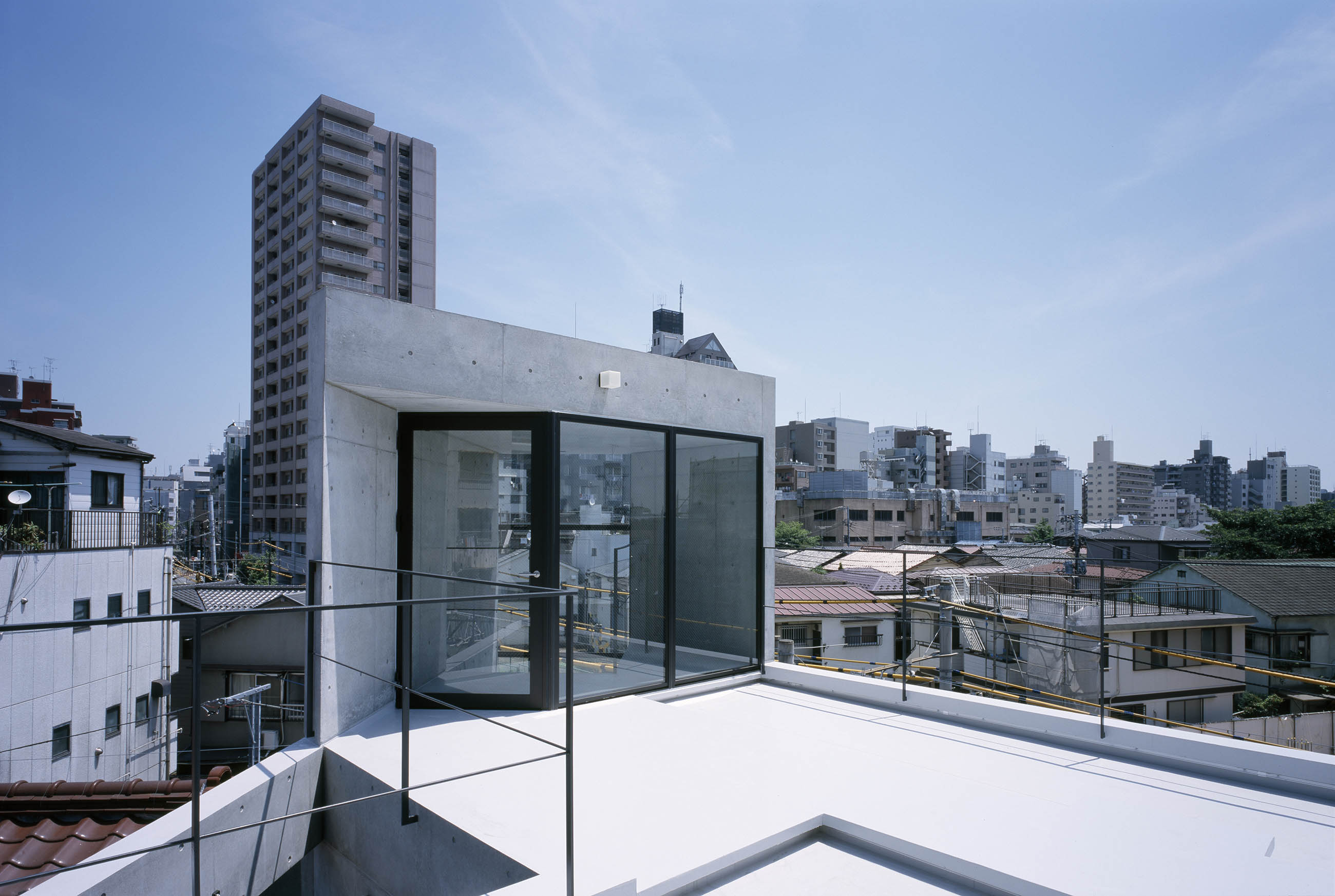

    PH floor area 6.35㎡
    Total floor area 207.51㎡
    Structure RC & Bearing wall structure
    Scale 3F+PH
    Typology Private housing
    Family structure A grandmother & a couple & a son
    Structure engineers Masaki Structural Laboratory
    Kenta Masaki
    Facility engineers Shimada Architects
    Zenei Shimada
    Construction Maekawa Construction
    Planning the house
    Photographer Masao Nishikawa
  • 所在地 東京都豊島区東池袋
    竣工 2010年5月
    敷地面積 80.85㎡(24.45坪)
    建築面積 64.38㎡(19.47坪)
    1F床面積 64.38㎡(19.47坪)
    2F床面積 75.11㎡(22.72坪)
    3F床面積 61.67㎡(18.65坪)
    PHF床面積 6.35㎡(1.92坪)
    延床面積 207.51㎡(62.77坪)
    構造 鉄筋コンクリート壁式構造
    規模 地上3階+PH階建
    用途 専用住宅
    家族構成 親子2世帯
    構造設計 正木構造研究所
    設備設計 シマダ設計
    施工 前川建設
    建築企画 the house
    建築写真 西川公朗
